Instrument View

Overview

The Instrument View shows the geometry of an instrument together with the data recorded by it. An instrument is always shown in the context of a workspace, and each detector is coloured according to the integrated counts in its corresponding spectrum. Detectors can be selected to inspect their position and metadata, and to plot the spectra they recorded. Regions of the instrument can be selected with overlay shapes and turned into masks, regions of interest or detector groupings, and peaks from a PeaksWorkspace can be overlaid on both the instrument and the plot.

Note

This view replaces the previous Instrument Viewer widget, which is still available and is documented at Legacy Instrument Viewer Widget.

Opening the Instrument View

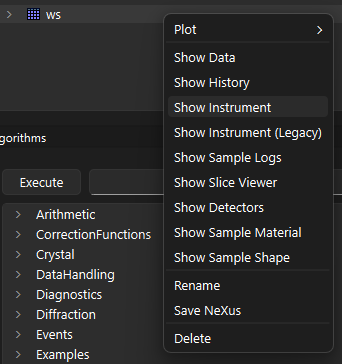

From Workbench, right-click a workspace in the Workspaces toolbox and select Show Instrument. The entry is only enabled for a MatrixWorkspace that has an instrument attached. Show Instrument (Legacy), directly below it, opens the previous widget instead.

The window follows the workspace it is showing: renaming or replacing the workspace updates the view, and deleting the workspace, or clearing the Analysis Data Service, closes the window.

The Instrument View is also used inside the ALFView interface and the ISIS Reflectometry Preview tab. Those interfaces use it unless Use legacy Instrument View in interfaces is ticked under File -> Settings -> General.

It can also be started outside Workbench, and used from a Jupyter notebook. See Python and command line access.

Window layout

The window is split into a control column on the left and the graphics on the right. The control column has three tabs, Home, Settings and Component Tree. The graphics area shows the instrument on top and a line plot of the selected spectra underneath, with the standard Mantid plot toolbar. Both splitters can be dragged to change the proportions.

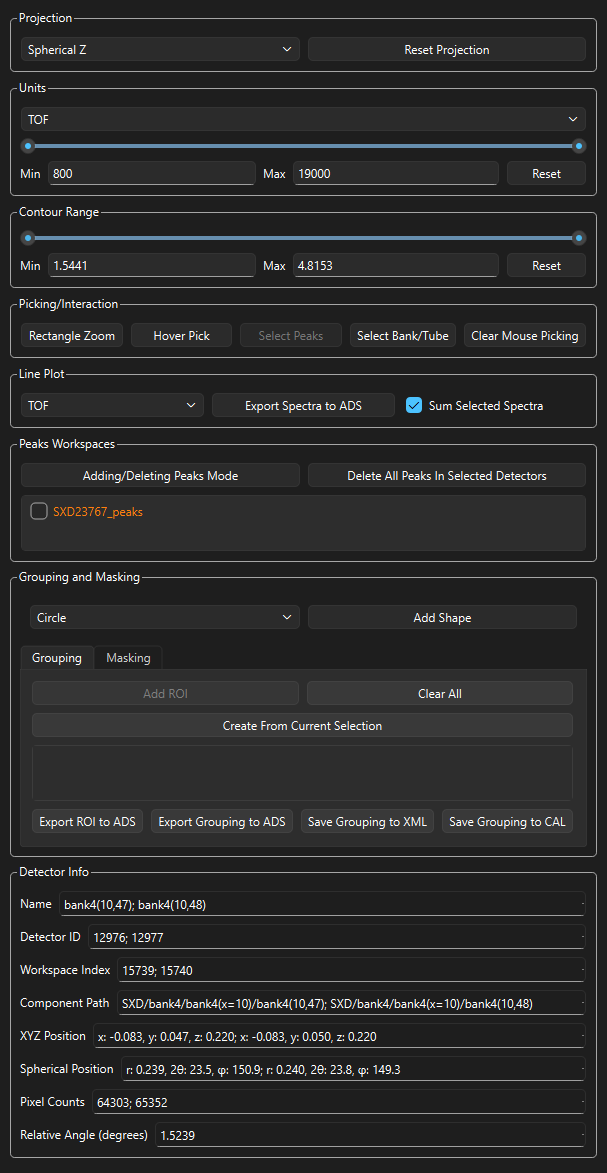

Home tab

Mouse controls

The Instrument View has no menus or keyboard shortcuts; everything is done with the mouse. What each button does depends on the projection and on which of the Picking/Interaction buttons is active.

Mode	Left button	Right button	Wheel
3D	Select a detector	Drag to rotate	Zoom
Flat projection	Select a detector	Reset the view	Zoom about the cursor
Rectangle Zoom	Drag to zoom; Shift, Ctrl or Alt and click to select a detector	Reset the view	Not used
Hover Pick	Not used	Reset the view	Zoom about the cursor
Shape overlaid	Move, resize or rotate the shape	Reset the view	Zoom about the cursor
Line plot, adding peaks	Add a peak	Delete the nearest peak	Not used

Clicking a detector toggles it, so clicking a selected detector deselects it, and any number of detectors can be selected.

Projection

The Projection combo box selects how the instrument is drawn:

• 3D: the instrument in three dimensions, which can be rotated freely.

• Spherical X, Spherical Y, Spherical Z: the detector positions projected onto a sphere about the sample and unwrapped onto the screen, using the given axis as the pole.

• Cylindrical X, Cylindrical Y, Cylindrical Z: an equal-area cylindrical projection about the given axis.

• Side by Side: each flat bank of detectors is unrolled into its own panel and the panels are laid out next to each other, so that every bank can be seen at once without foreshortening.

The default is taken from the instrument definition file. Reset Projection returns the camera to its default position and zoom for the current projection.

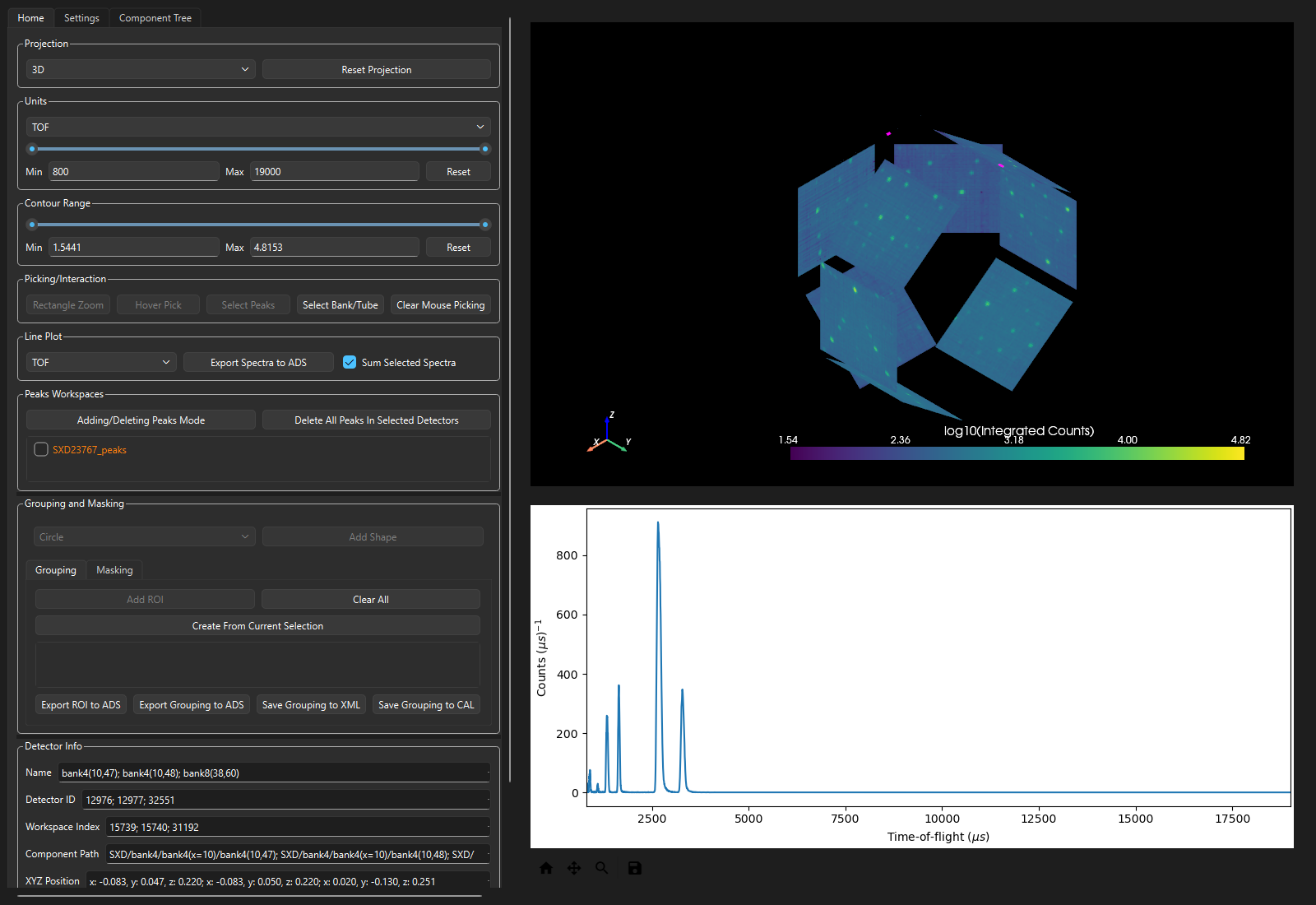

SXD in the 3D projection.

Banks in the Side by Side view are arranged automatically, but their positions can be set explicitly with the side-by-side-view-location tag in the instrument definition file.

The same instrument in the Side by Side projection.

Several controls only apply to the flat projections and are disabled in 3D: Rectangle Zoom, Hover Pick, the shape controls and Maintain Aspect Ratio. Flip Beam, Rotate 180° and Rotate are disabled in both 3D and Side by Side.

Units

Selects the units and the range over which counts are integrated to colour the detectors. The available units are TOF, dSpacing, Wavelength and MomentumTransfer. A workspace with no X unit shows No units instead.

The range is set either by dragging the two handles of the slider or by typing into the Min and Max boxes. Reset restores the full range of the data. The whole section is hidden for workspaces whose data does not span a range, such as single-bin workspaces.

Contour Range

Sets the minimum and maximum of the colour map, using the same slider and Min and Max boxes. Narrowing the range brings out detail in weak regions of the instrument. Reset restores the limits to the range of the integrated counts.

Picking/Interaction

These buttons change what the mouse does in the instrument display. They are toggles, and selecting one may switch others off where the combination would be ambiguous.

Rectangle Zoom

Drag with the left button to zoom into a rectangle. Holding Shift, Ctrl or Alt while clicking picks a detector instead, without leaving the zoom mode.

Hover Pick

Preview a single detector’s spectrum and information by moving the mouse over it, without clicking. The selection is not changed. Only available in the 2D projections.

Select Peaks

Clicking selects the nearest detector that has a peak on it, rather than the exact detector under the cursor. Only enabled while peak overlays are shown.

Select Bank/Tube

Clicking selects every detector in the parent component of the detector clicked, usually the whole tube or bank.

Clear Mouse Picking

Deselects everything selected by clicking. Selections made from the ROI and mask lists are left alone.

Line Plot

Controls the plot underneath the instrument. The combo box sets the units of its x axis independently of the units used for the colour map.

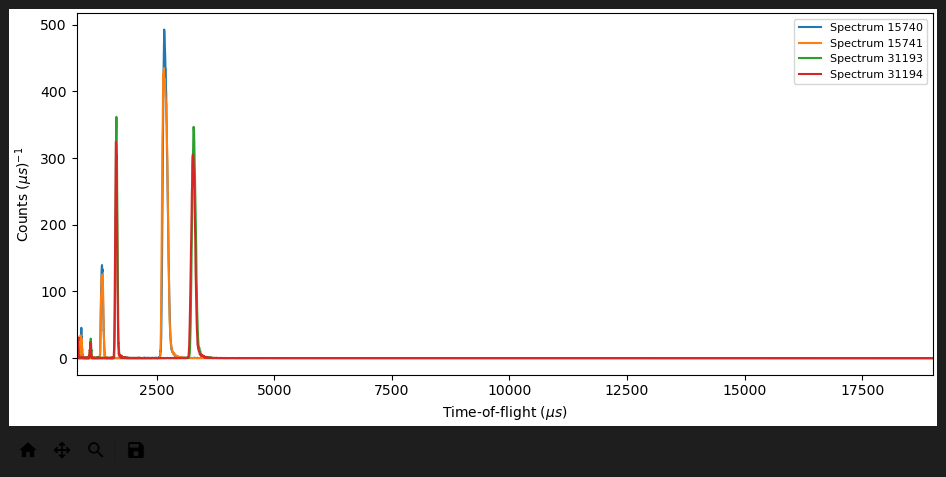

Sum Selected Spectra, on by default, plots the sum of the selected spectra rather than one curve per detector. Summing converts to d-spacing, sums, and converts back to the chosen unit, so that detectors at different scattering angles add up correctly.

Export Spectra to ADS saves whatever is currently plotted into a workspace named instrument_view_selected_spectra_<workspace name>.

Peaks Workspaces

Lists every PeaksWorkspace in the Analysis Data Service that belongs to the same instrument. Peaks workspaces can also be dragged from the Workspaces toolbox and dropped onto the list. Ticking one overlays its peaks on the instrument as coloured markers labelled with their Miller indices, and draws them on the line plot as dashed vertical lines. Each workspace is given its own colour, shown next to its name.

Where several peaks fall on one detector, the marker is labelled with the indices of the peak with the largest d-spacing followed by the number of peaks, for example [1, 1, 0] x 4.

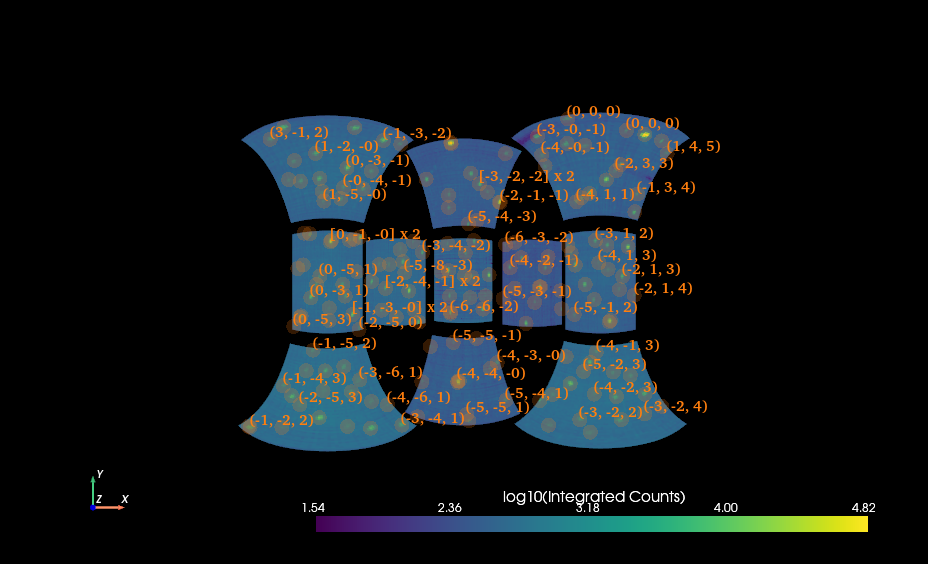

Peaks overlaid on the instrument, labelled with their Miller indices.

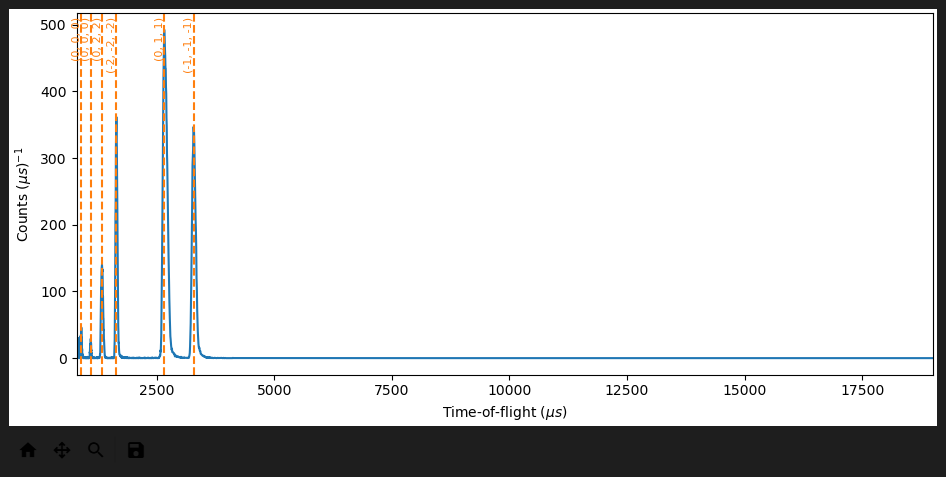

The same peaks on the line plot for the selected detectors.

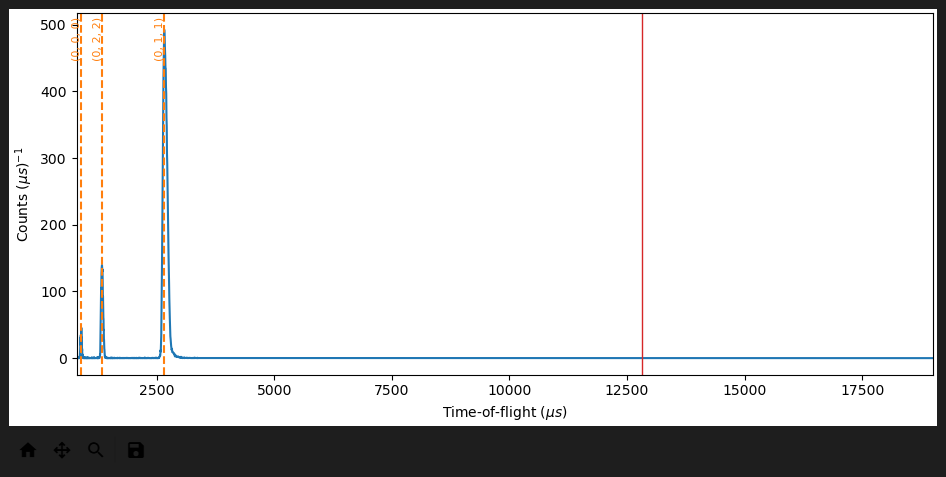

Adding/Deleting Peaks Mode allows peaks to be added and removed by clicking on the line plot:

1. Turn the mode on. A red vertical cursor follows the mouse across the plot.

2. Click a detector in the instrument display. In this mode only one detector is selected at a time.

3. Left-click on the plot at the position of a peak to add it, or right-click near a peak to delete the nearest one.

Peaks are added to the ticked peaks workspace if exactly one is ticked. Otherwise a workspace named instrument_view_peaks_<workspace name> is created and used. The plot’s own zoom and pan tools continue to work while the mode is active.

Delete All Peaks In Selected Detectors removes every peak on the currently selected detectors from all ticked peaks workspaces.

Grouping and Masking

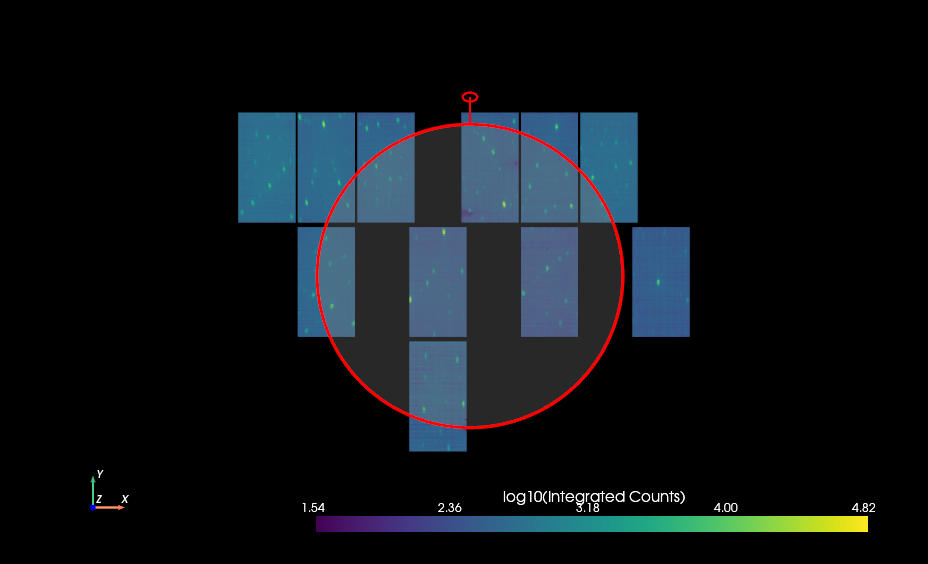

Regions of the instrument are selected either by overlaying a shape on a flat projection, or from the detectors already selected in the display. To use a shape, choose one from the combo box, Circle, Rectangle, Ellipse, Annulus or Hollow Rectangle, and press Add Shape.

The shape can be moved by dragging from inside it and resized by dragging an edge. Rectangle, Ellipse and Hollow Rectangle also have a rotation handle above the shape. Annulus and Hollow Rectangle have an inner boundary that is resized independently of the outer one. The cursor changes to show which of these is about to happen.

While a shape is on screen the line plot shows the summed spectra of the detectors it covers, and follows the shape as it is moved, resized, rotated or as the view is zoomed. Only one shape exists at a time. Pressing Add Shape again replaces it, and switching the button off removes it.

The two tabs underneath turn the covered detectors into a permanent selection:

Grouping

Add ROI adds the covered detectors to the list as a region of interest. Each entry in the list becomes one group when a grouping is exported, numbered in list order.

Masking

Add Mask adds the covered detectors to the list as a mask. Masked detectors are drawn dark grey and cannot be picked.

If Select Bank/Tube is on, the selection is expanded from the covered detectors to the whole of each tube or bank they belong to.

Create From Current Selection, on both tabs, adds an entry from the detectors currently selected in the display rather than from a shape. Detectors can be clicked one at a time, or a tube or a bank at a time with Select Bank/Tube, and then committed without having to draw a shape around them. It uses everything that is highlighted, which includes the detectors of any ticked Grouping entry as well as those clicked directly; only the ones clicked directly are deselected once the new entry has been added.

The button is enabled only while something is selected, and never while Hover Pick or Adding/Deleting Peaks Mode is on, because those use the selection to show what is under the cursor rather than to build one up.

Entries are ticked when added and can be ticked and unticked to combine them; the effect of all ticked entries is applied together. Clear All removes the entries created in this session. Any MaskWorkspace or GroupingWorkspace in the Analysis Data Service for the same instrument is also listed, so existing masks and groupings can be applied here too.

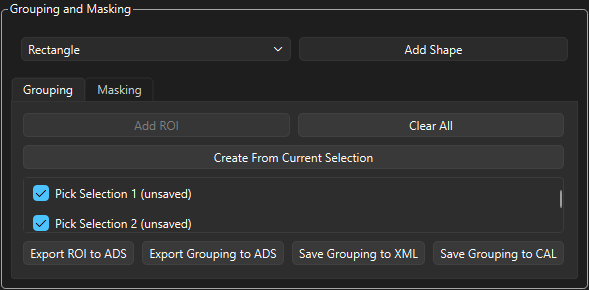

Two regions of interest on the Grouping tab.

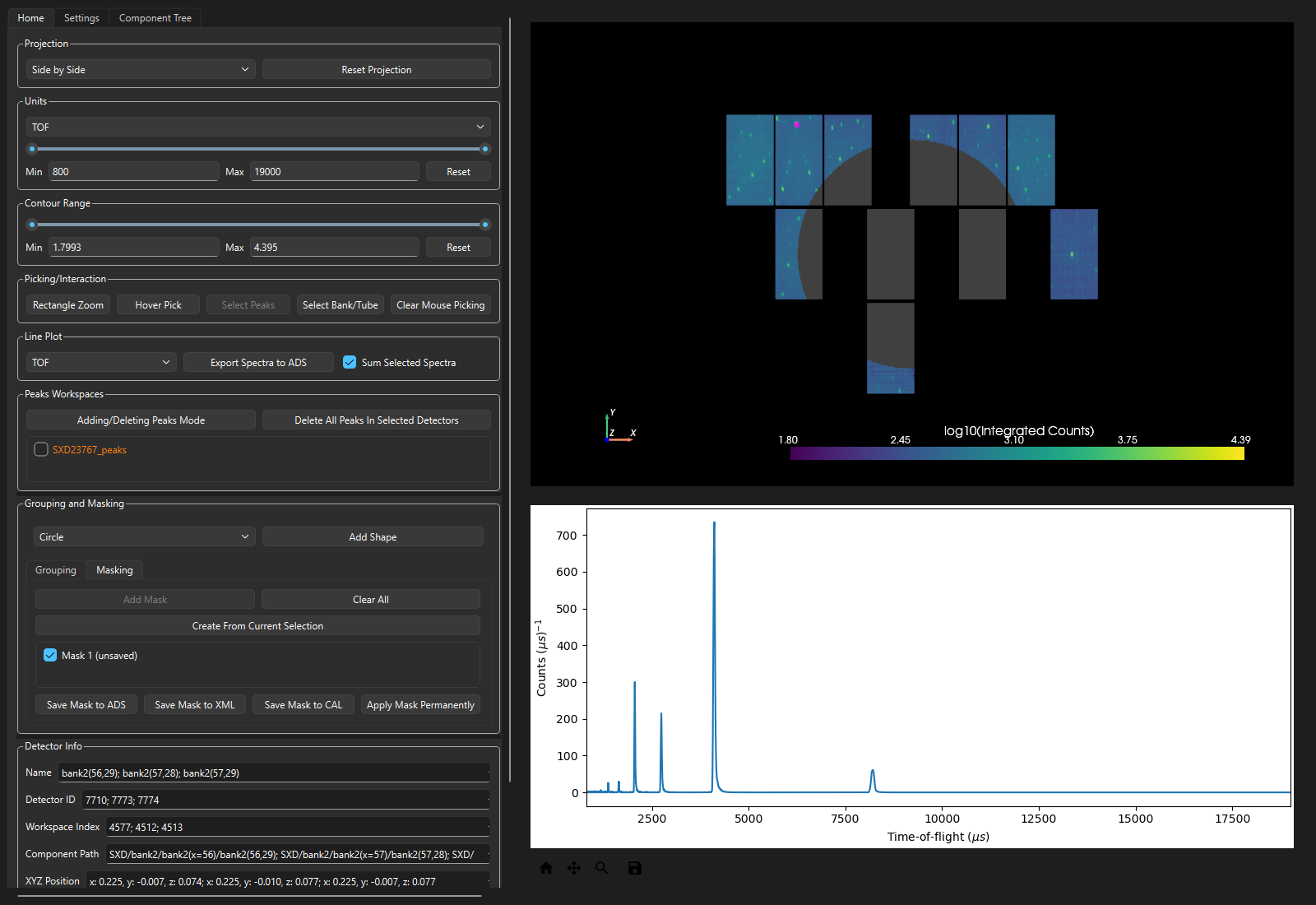

A mask on the Masking tab. The masked detectors are drawn dark grey.

Saving masks, regions of interest and groupings

Button	Result
Save Mask to ADS	Creates MaskWorkspace and, via ExtractMaskToTable, MaskTable in the Analysis Data Service.
Save Mask to XML	Writes the mask to a file with SaveMask.
Save Mask to CAL	Writes the mask to a file with SaveCalFile.
Apply Mask Permanently	Masks the detectors in the displayed workspace itself with MaskDetectors.
Export ROI to ADS	Creates MaskWorkspace and MaskTable for the region of interest.
Export Grouping to ADS	Creates GroupingWorkspace with CreateGroupingWorkspace, one group per ticked entry.
Save Grouping to XML	Writes the grouping to a file with SaveDetectorsGrouping.
Save Grouping to CAL	Writes the grouping to a file with SaveCalFile.

Warning

Apply Mask Permanently modifies the workspace being displayed and cannot be undone from the Instrument View. Everything else on this page leaves the workspace unchanged.

Note

The workspace names used when exporting to the Analysis Data Service, MaskWorkspace, MaskTable and GroupingWorkspace, are fixed, so each export overwrites the previous one. Rename them if you need to keep more than one.

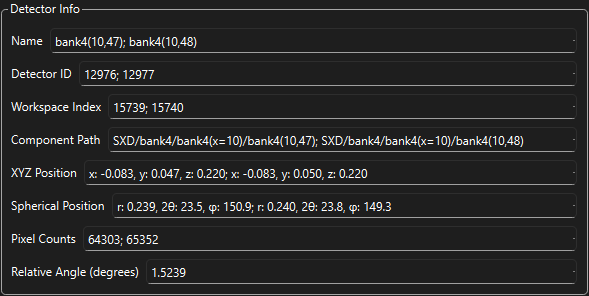

Detector Info

Shows the details of the selected detectors. It appears when detectors are selected and is hidden again when the selection is cleared. Details are shown for up to three detectors at a time; beyond that only the plot is updated.

Field	Meaning
Name	Name of the detector.
Detector ID	Detector ID in the instrument.
Workspace Index	Index of the corresponding spectrum in the workspace.
Component Path	Full path of the detector through the instrument tree.
XYZ Position	Cartesian position in metres.
Spherical Position	Distance in metres, then the scattering angle and azimuthal angle in degrees.
Pixel Counts	Counts integrated over the current range.
Relative Angle (degrees)	Angle between the two selected detectors in reciprocal space. Shown only when exactly two detectors are selected.

Settings tab

Maintain Aspect Ratio

Draws the detectors in a flat projection with their true aspect ratio rather than stretching them to fill the window.

Flip Beam

Mirrors a 2D projection about the plane perpendicular to the beam, which swaps the left and right halves of the instrument. It is disabled in 3D and Side by Side.

Rotate 180°

Rotates a 2D projection half a turn about its axis, swapping the two halves of the instrument. This is the setting most often wanted, and is the equivalent of setting the old Instrument View’s U Correction to [0, 6.28]. Unlike Flip Beam it only turns the instrument, so the order of the banks is unchanged. While it is ticked the Rotate slider is disabled, because the half turn overrides it.

Rotate

Rotates a 2D projection by any angle about its axis, moving the seam at which it is cut open and unwrapped. By default the seam is placed automatically, in the widest gap between detectors; use this to choose a different one, for example to bring a bank that is split across the left and right edges back together in the middle. It is the equivalent of the old Instrument View’s U Correction, and has no effect in 3D or Side by Side.

Monitors

Draws the monitors, in the colour shown next to the checkbox.

Sample

Draws the sample position, in the colour shown next to the checkbox. If the workspace has a sample shape defined, that shape is drawn instead of a single point.

Render mode

How much detector geometry is drawn:

• Points (Fastest): each detector is a single point.

• Approximated Shapes (Fast): detector shapes are drawn, approximated by simple quads.

• Raw Shapes (Slowest): the full detector geometry is drawn. This can take noticeably longer for larger instruments.

Count scale

Linear or Logarithmic colouring of the integrated counts. The logarithmic scale is useful when a few detectors dominate the count range.

Maintain Aspect Ratio, Flip Beam, Rotate 180°, Rotate and the render mode are remembered between sessions.

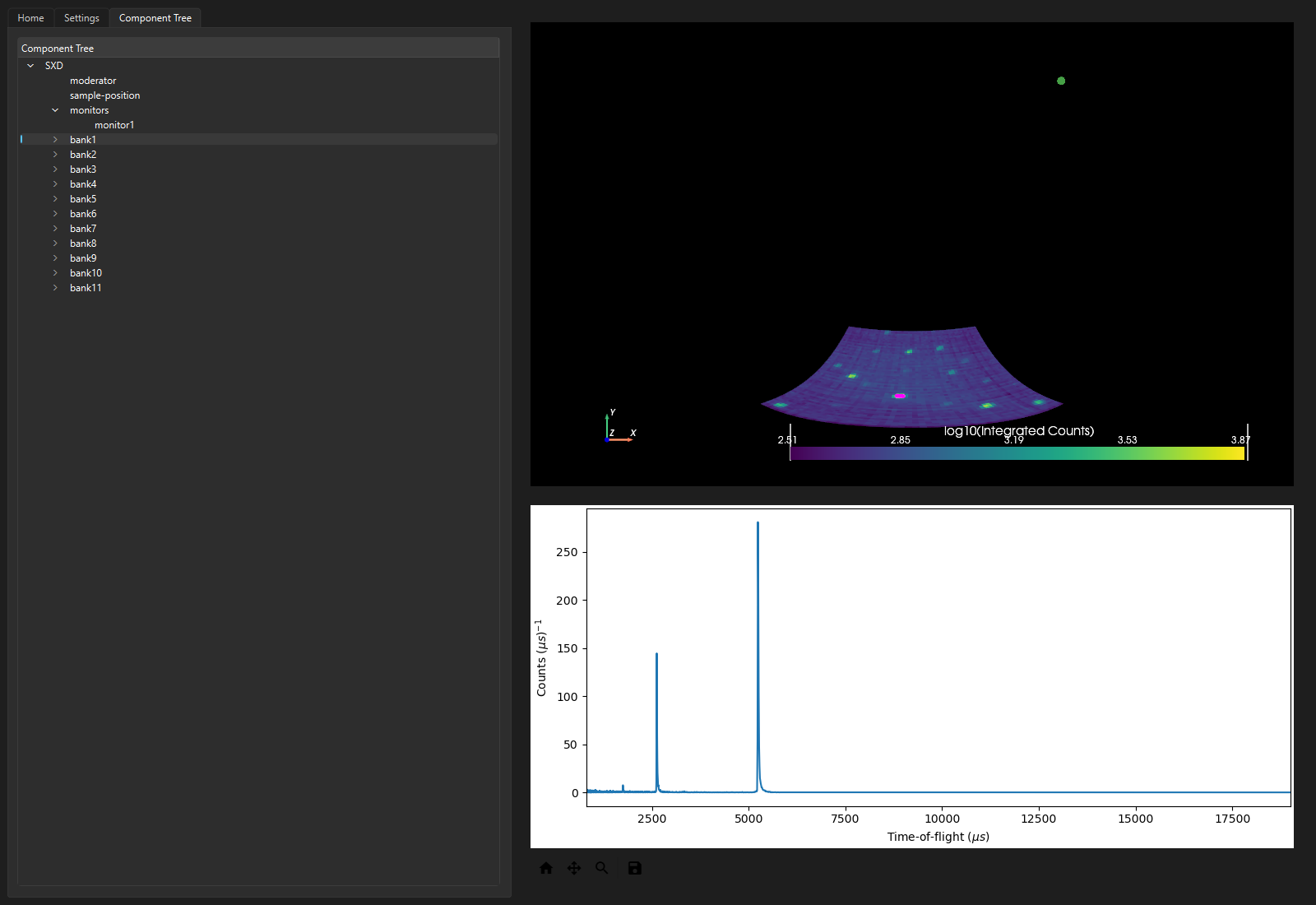

Component Tree tab

Shows the components of the instrument as they are named and arranged in the Instrument Definition File. Branches are expanded as they are opened, so even large instruments appear immediately.

Selecting one or more components restricts the display to those components. Clearing the selection restores the whole instrument.

Python and command line access

The Instrument View can be opened outside Workbench from the command line, given a file containing an instrument:

python -m instrumentview --file /path/to/file.nxs

The same thing can be done from a script, which creates its own QApplication and blocks until the window is closed:

from instrumentview.InstrumentView import InstrumentView

InstrumentView.start_app_open_window("/path/to/file.nxs")

To show a workspace that already exists inside a running Workbench, build the window, model and presenter directly:

from instrumentview.FullInstrumentViewWindow import FullInstrumentViewWindow
from instrumentview.FullInstrumentViewModel import FullInstrumentViewModel
from instrumentview.FullInstrumentViewPresenter import FullInstrumentViewPresenter

window = FullInstrumentViewWindow()
window.show()
FullInstrumentViewPresenter(window.get_instrument_view_widget(), FullInstrumentViewModel(ws))

In a Jupyter notebook the instrument can be rendered inline instead. This is a display-only view: it draws the instrument and plots the spectra of chosen detectors, but has none of the tabs, masking, grouping or peak editing of the full window.

from instrumentview.NotebookUtils import create_notebook_window

view = create_notebook_window("/path/to/file.nxs")
view.pick_detectors([100, 101], sum_spectra=True)
