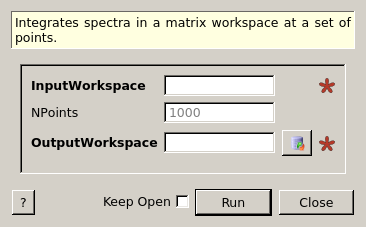

IntegrateFlux dialog.
Table of Contents
| Name | Direction | Type | Default | Description |
|---|---|---|---|---|
| InputWorkspace | Input | MatrixWorkspace | Mandatory | An input workspace. Must have units of Momentum |
| NPoints | Input | number | 1000 | Number of points per output spectrum. |
| OutputWorkspace | Output | Workspace | Mandatory | An output workspace. |
If a spectrum in the input workspace contains function
then the corresponding spectrum in
the output workspace has its indefinite integral:
.
Example - IntegrateFlux
# Create an event workspace
ws = CreateSampleWorkspace(WorkspaceType="Event", XUnit="Momentum")
# Integrate all spectra.
wsOut = IntegrateFlux( ws )
# Print the result
print("The input workspace has {} spectra".format(ws.getNumberHistograms()))
print("The output workspace has {} spectra".format(wsOut.getNumberHistograms()))
Output:
The input workspace has 200 spectra
The output workspace has 200 spectra
Categories: AlgorithmIndex | MDAlgorithms\Normalisation
C++ header: IntegrateFlux.h (last modified: 2018-10-05)
C++ source: IntegrateFlux.cpp (last modified: 2019-12-20)
