MuH¶

Description¶

Fitting function for use by Muon scientists defined by:

$A(t)=\frac{A_0(t)}{6}e^{-\lambda t}e^{-\frac{(\sigma t)^2}{2}}\left(1+\cos(\omega_{D}t + \phi)+2\cos\left(\frac{\omega_D}{2}t+\phi\right)+2\cos\left(\frac{3\omega_D}{2}t+\phi\right)\right)$

$A_0$ is the amplitude,

$\lambda$ is the exponential decay rate,

$\sigma$ is the gaussian decay rate,

$\omega_D = 2 \pi \nu_D$ where $\nu_D$ (MHz) is the oscillating frequency,

and $\phi$ (rad) is the phase at time $t=0$ .

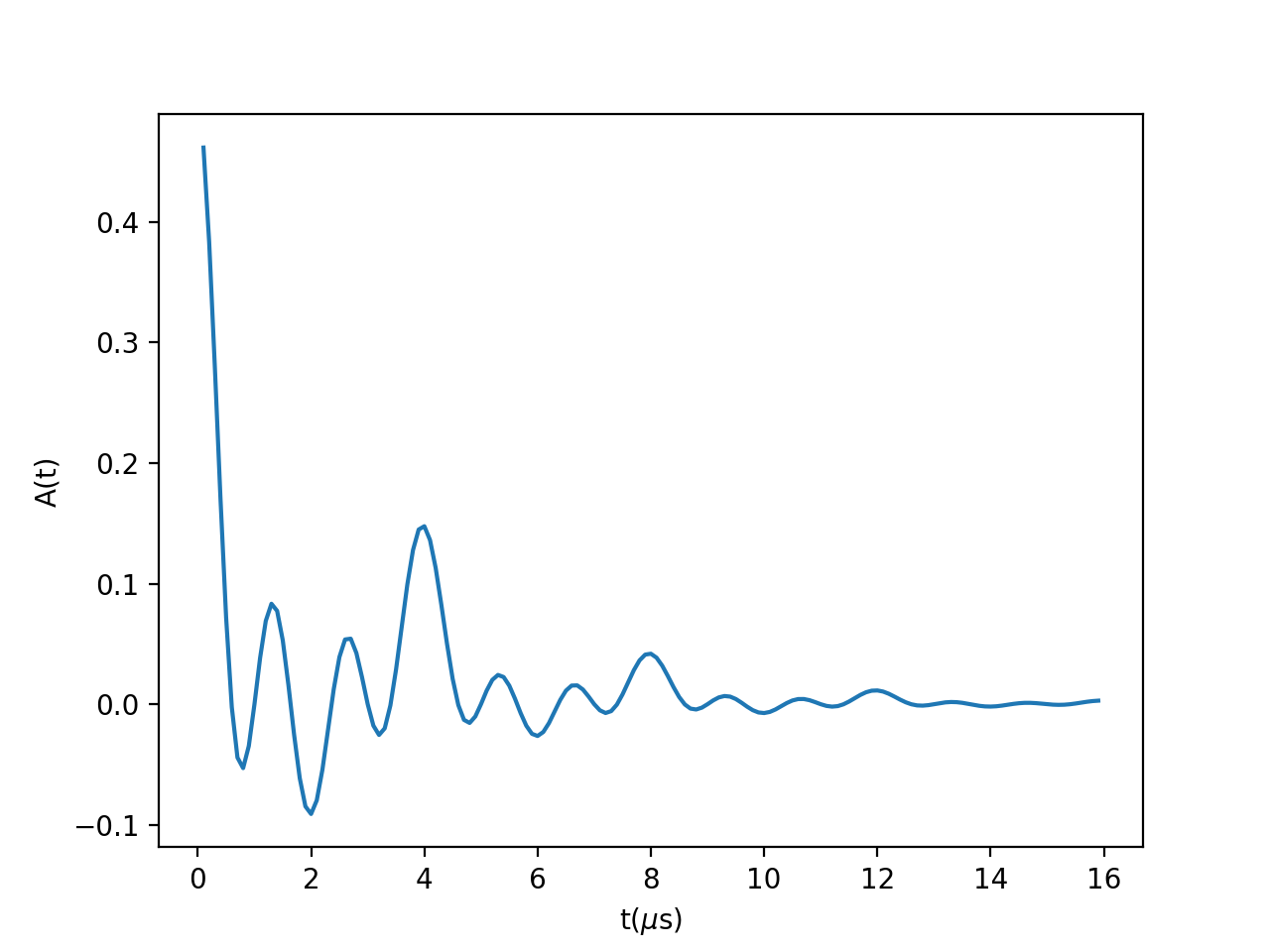

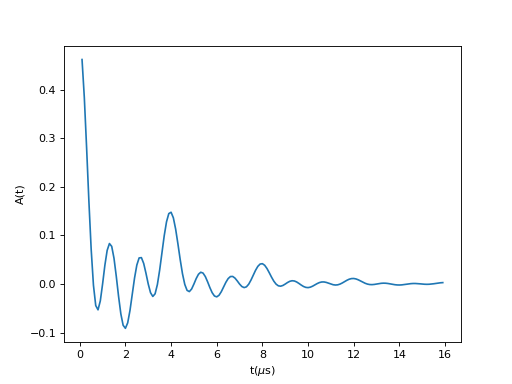

(Source code, png, hires.png, pdf)

Properties (fitting parameters)¶

Name	Default	Description
A0	0.5	Amplitude
NuD	0.5	Oscillating Frequency (MHz)
Lambda	0.3	Exponential decay rate
Sigma	0.05	Gaussian decay rate
Phi	0.0	Phase (rad)

References¶

[1] T. Lancaster et al., J. Phys.: Condens. Matter 21 346004 (2009).

Categories: FitFunctions | Muon\MuonSpecific

Source¶

Python: MuH.py (last modified: 2020-02-06)
