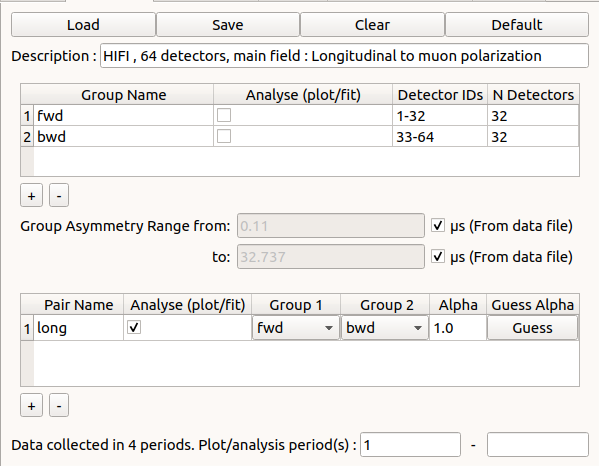

Load Allows a grouping and pairing table xml file to be selected to load.
Save Saves the current grouping and pairing tables to an xml file.
Clear Clears all groups and pairs from the current tables.
Default Loads in the default groups and pairs for the instrument.
Analyse (plot/fit) Whether the selected group is included in the plot and fitting.
Plus and Minus Add or remove groups.
Context Menu Pair Selection Right clicking over the grouping table, when two groups are selected, allows a pair to be created with a specified name.
Group Asymmetry Range Controls the range to use when estimating the group asymmetry. The values are used as StartX and EndX in EstimateMuonAsymmetryFromCounts. By default this range is the first good data and end time value from the file
but may be overridden here if required.
Analyse (plot/fit) Whether the selected pair is included in the plot and fitting.
Plus and Minus Add or remove pairs.
Guess Alpha Estimates the alpha for the current pair and recalculates.
For multi period data, the summed and subratcted periods are specfied at the bottom of the tab. These periods will be used for all the groups and pairs.
