StitchByBackground v1

Summary

Stitch banks together at given x-axis values, without rebinning the data to preserve resolution.

Properties

Name	Direction	Type	Default	Description
InputWorkspaces	Input	str list	Mandatory	List of workspaces to be stitched together.
OutputWorkspace	Output	Workspace	Mandatory	The stitched workspace.
StitchPoints	Input	dbl list		Values on the x-axis (between adjacent spectra) where the stitch should take place. i.e. Overlaps in the data.
OverlapWidth	Input	number	0.05	A linear background is fitted to data in the region StitchPoint +/- OverlapWidth (i.e. the data is fitted to span range 2*OverlapWidth).
CropLowerBound	Input	number	0	The XMin to use when cropping the output workspace.
CropUpperBound	Input	number	0	The XMax to use when cropping the output workspace.

Description

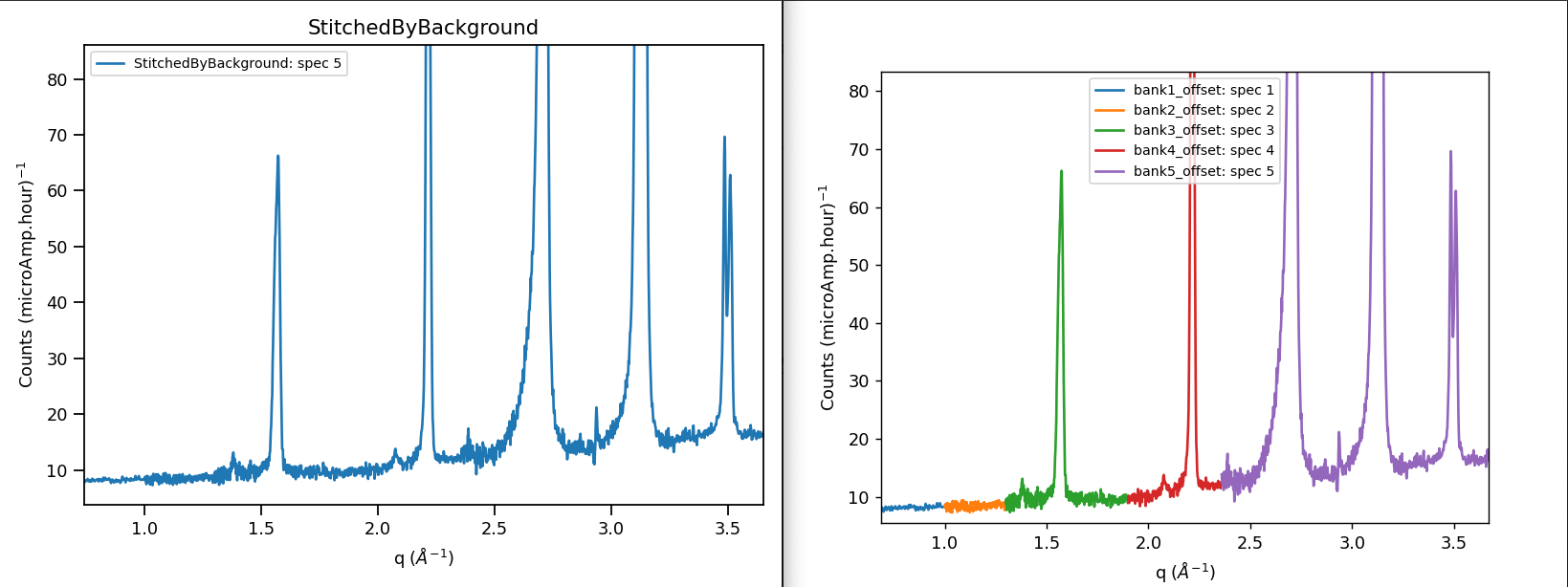

This algorithm allows for the stitching of a list of single-spectra workspaces into one workspace by using a number of user-defined stitch points at x values and an overlap region around these points in which to perform a linear background fit.

In comparison to Stitch1DMany v1 or MatchAndMergeWorkspaces v1, this algorithm does not perform any rebinning during the stitching process, creating a ragged workspace that can be rebinned appropriately later in the reduction.

Usage

Example - StitchByBackground

ws_list = []
stitch_points = []

for i in range(5):
    CreateSampleWorkspace(OutputWorkspace=f"ws_{i+1}", NumBanks=1, BankPixelWidth=1, Function="Multiple Peaks", XMin=20000*i, XMax=20000*(i+1))
    ws_list.append(f"ws_{i+1}")
    stitch_points.append(20000*(i+1))
stitch_points.pop(-1)

StitchByBackground(InputWorkspaces=ws_list, StitchPoints=stitch_points, OutputWorkspace="out", OverlapWidth=2000, CropUpperBound=95000, CropLowerBound=0)
print(f"Stitched workspace has {mtd['out'].blocksize()} bins.")

Output:

Stitched workspace has 475 bins.

Categories: AlgorithmIndex | Utility

Source

Python: StitchByBackground.py
