Engineering Diffraction¶

Interface Overview ¶

This custom interface will integrate several tasks related to engineering diffraction. In its current state it provides functionality for creating and loading calibration files and focusing ENGINX run files.

Functionality for performing single peak fitting on focused run files is currently in progress.

This interface is under active development.

General Options ¶

RB Number: The reference number for the output paths (usually an experiment reference number at ISIS). Leaving this field empty will result in no user directories being created, and only the general directory will be used for file storage.
Instrument: Select the instrument (ENGINX or IMAT). Currently only ENGINX is fully supported.

?: Show this documentation page.

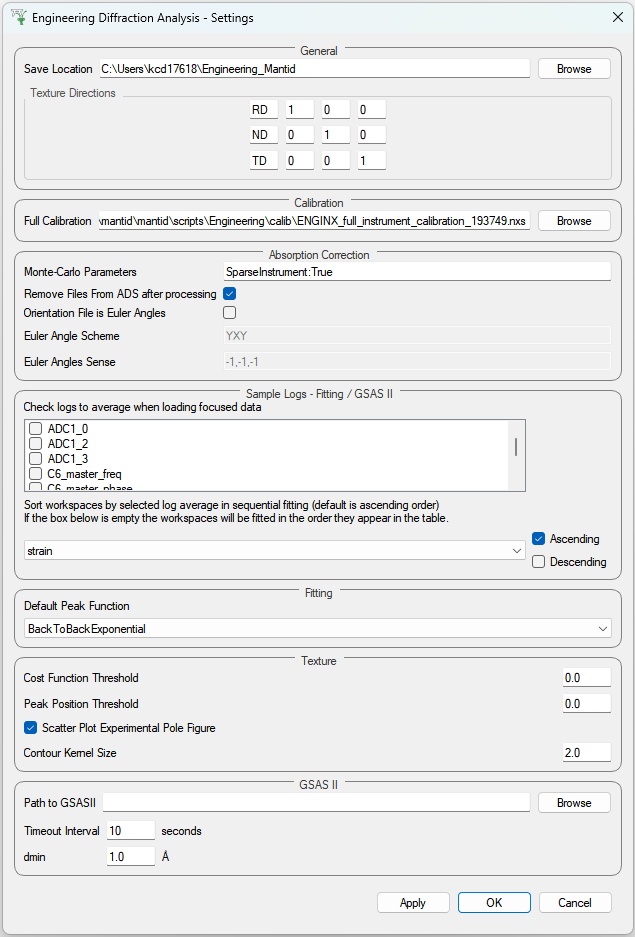

Settings: Provides a range of options that apply across the entire interface, currently providing the option to change the default output directory. The user can also select the log values from a list which are loaded with data in the fitting tab and select a log by which to sort the runs in a sequential fit. There is also an option to specify a peak function to fit (limited to a subset of all peak functions that are recommended for the UI) which will be set on opening the interface. Note that the user can select any peak function to fit (even a non-recommended one) at a later point when adding a peak in the fitting tab.
Close: Close the interface.

Other Information ¶

Red Stars

Red stars next to browse boxes and other fields indicate that the file could not be found. Hover over the star to see more information.

Status Bar

The status bar shows the calibration run numbers the GUI is currently using. It also displays the save directory (which can be changed in the settings).

Saved File Outputs

The location of files saved by the GUI during processing will be shown in the mantid messages log.

Note: The locations are shown at “Notice” level, so may not appear if the messages log is on the incorrect setting.

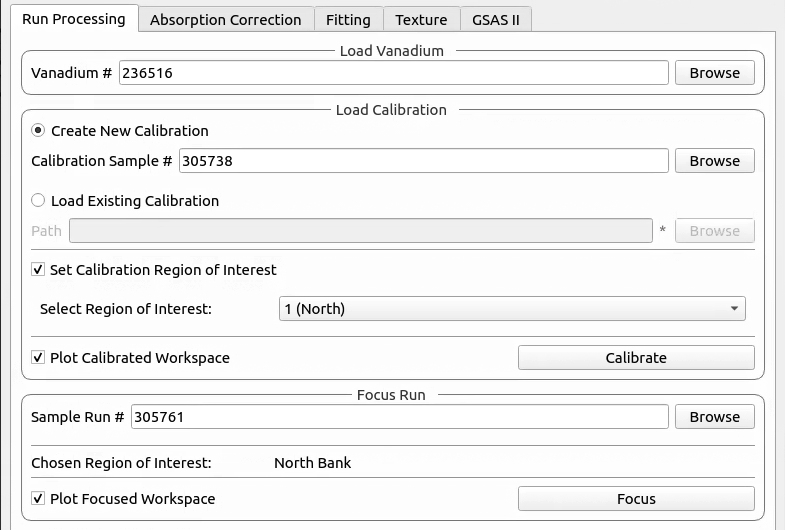

Calibration ¶

This tab currently provides a graphical interface to create new calibrations and visualise them. It also allows for the loading of GSAS parameter files (.prm) created by the calibration process to load a previously created calibration into the interface.

When loading an existing calibration, the fields for creating a new calibration will be automatically filled, allowing the recreation of the workspaces and plots generated by creating a new calibration.

The “Plot Output” check-box will plot the fitted TOF as a function of d-spacing for the ceria peaks in each group (typically a bank) when a new calibration is calculated.

Creating a new calibration file generates instrument parameter files for the selected region of interest. If both banks are selected then two additional .prm files are created - one for each individual bank. The calibration files are written to the directory:

<CHOSEN_OUTPUT_DIRECTORY>/Calibration/

If an RB number has been specified the files will also be saved to a user directory in the base directory:

<CHOSEN_OUTPUT_DIRECTORY>/User/<RB_NUMBER>/Calibration/

In the case the ROI being Texture20 or Texture30 the files are saved to only one directory (the latter if an RB number is specified, otherwise the former) - this is to limit the number of files being written.

Cropping ¶

The interface also provides the ability to restrict a new calibration to a particular region of interest: one of the two banks on ENGIN-X, a custom grouping file (.cal or .xml files), a list of spectra (referred to as cropped), Texture20 grouping (consists of 10 groupings per detector bank - 20 in total) and Texture30 (15 groupings per detector bank - 30 in total).

Parameters ¶

Calibration Sample Number: The run number for the calibration sample run (such as ceria) used to calibrate experiment runs.
Path: The path to the GSAS parameter file (.prm) to be loaded.
Region Of Interest: Select a bank to crop to or specify a custom spectra will be entered.
Custom Grouping File: The path to a custom .cal or .xml file with the desired detector groupings.
Custom Spectra: A comma separated list of spectra to restrict the calibration to. Can be provided as single spectrum numbers or ranges using hyphens (e.g. 14-150, 405, 500-600).

../../_images/EnggDiffExpectedLinear.png

Absorption Correction ¶

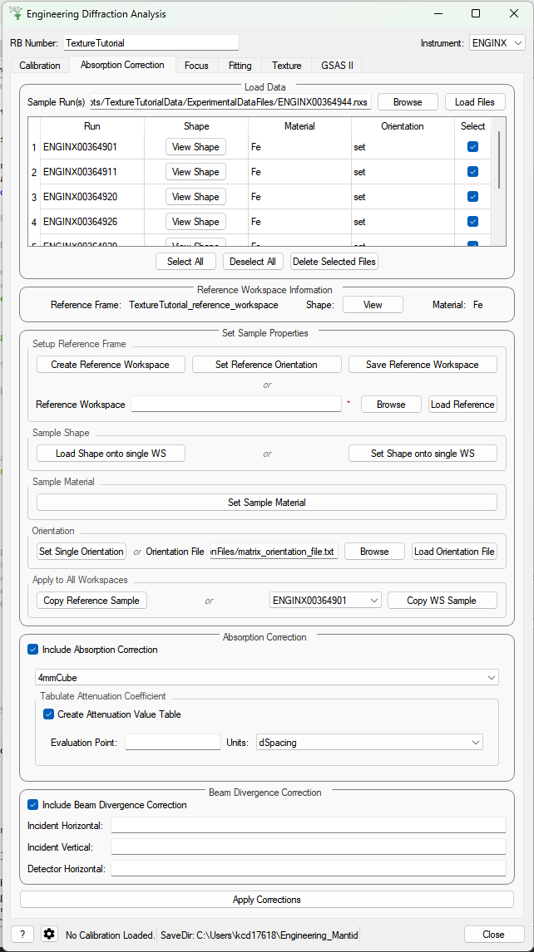

This tab allows corrections to be applied to the input data files, as well as attaching sample information, such as shape, material and orientation. Additional functionality is to correct experimental intensity for beam divergence and to calculate a table of attenuation coefficients for a given bin in the spectra.

Parameters ¶

Sample Run(s): The run numbers of or file paths to the data files to be corrected.
Reference Workspace: The file path to a reference workspace with the default sample information (sample shape in neutral positioner orientation and material)
Orientation File: The file path to the orientation data for the experiment. This is either given as a collection of flattened rotation matrices or euler rotation angles
Custom Gauge Volume File: File path to an XML file containing a Constructive Solid Geometry description of the gauge volume geometry
Evaluation point: Position along the spectra x-axis where the attenuation value saved into the table should be evaluated
Units: Unit the x-axis should be in when getting the attenuation at the evaluation point
Incident Horizontal: The horizontal component of the divergence of the incident beam (in radians)
Incident Vertical: The vertical component of the divergence of the incident beam (in radians)
Detector Horizontal: The horizontal component of the divergence of the scattered beam (in radians) - currently this correction assumes this is the same for all detector groups

Settings Parameters ¶

Texture Directions: Defines the intrinsic directions of the sample, which will be used for plotting and calculating pole figures. The second axis (second row of the matrix) is always the normal to the pole figure plane. Both the vectors and the labels of these axes can be modified here
Monte Carlo Parameters: Python dictionary-style string for input parameters to the MonteCarloAbsorption v1 algorithm, where keywords and values are given as keyword1:value1, keyword2, value2
Remove File from ADS after processing: Flag for whether the calculated corrected workspaces need to be kept in the ADS (flagging them for removal frees up system memory)
Orientation File is Euler Angles: Flag for notifying whether the orientation file which will be provided in the correction tab is a text file with euler angles or whether each line is a flattened matrix
Euler Angle Scheme: Lab-frame axes that the euler angles are defined along, when in neutral position
Euler Angles Sense: The sense of the rotation around each euler axis where 1 is counter clockwise and -1 is clockwise

Buttons/Functions ¶

Browse: Opens a file navigator to find desired file
Load Files: Loads the selected sample runs into the table
Select All: Sets all of the loaded workspaces in the table to selected
Deselect All: Sets all of the loaded workspaces in the table to unselected
Delete Selected Files: Deletes all of the loaded files, whcih are set as selected, from the table

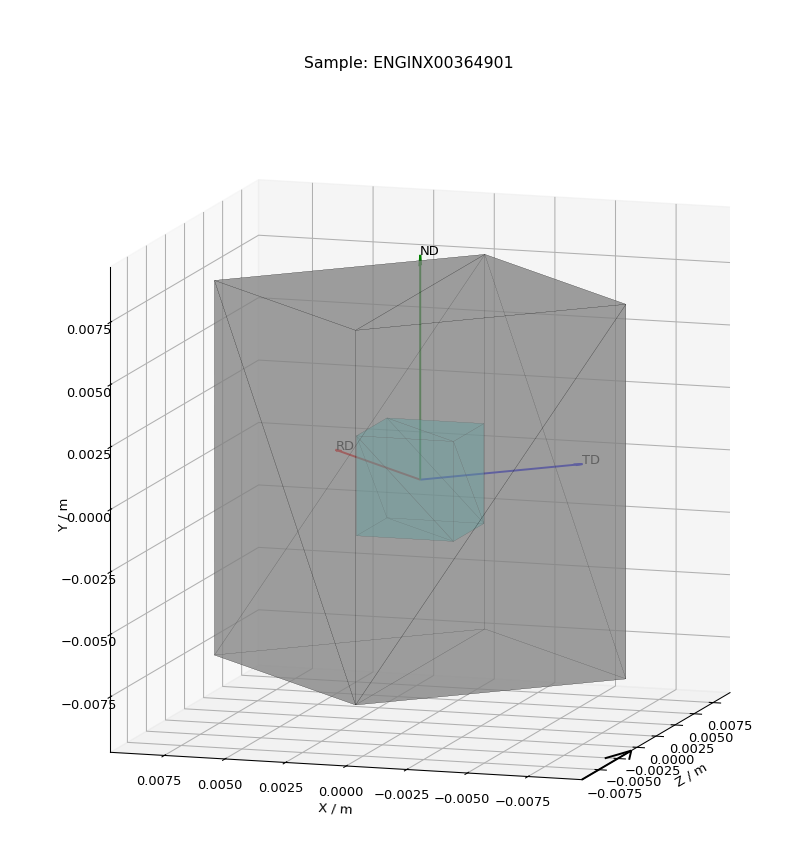

View/View Shape: Pops up a plot of the sample shape on a given workspace, along with the relative orientation of sample axes (defined in the settings)

Create Reference Workspace: Creates an empty workspace that can hold the reference sample information that can then be copied onto each experimental workspace
Set Reference Orientation: Allows an initial orientation to be applied to the reference shape to align it correctly with the experimental sample upon a positioner with neutral/default/homed motor values
Save Reference Workspace: Saves the reference workspace into the experimental data folder
Load Reference: Loads a reference workspace from provided file path
Load Shape onto Single WS: Opens dialog for LoadSampleShape v1, allows loading of STL sample shape onto the reference/experimental workspaces
Set Shape onto Single WS: Opens dialog for CreateSampleShape v1, allows defining sample shape onto the reference/experimental workspaces using constructive solid geometry XML string
Set Sample Material: Opens dialog for SetSampleMaterial v1, allows definition of sample material properties onto the reference/experimental workspaces
Set Single Orientation: Opens dialog for SetGoniometer v1, allows definition of sample orientation onto individual experimental workspaces
Load Orientation File: Reads the provided orientation file and sets the orientation provided in each line onto the selected workspaces in turn
Copy Reference Sample: Copies the sample information from the reference workspace onto all of the selected workspaces
Copy WS Sample: Copies the sample information from the workspace in the dropdown menu onto all of the selected workspaces
Apply Correction: Applies all the flagged corrections according to the provided parameters onto each selected workspace in turn, saving the resulting workspaces in the indicated save directory

Focus ¶

This tab allows for the focusing of data files - summing up spectra in a given region of interest. To do this a new or existing calibration must be created or loaded (see above) and a vanadium run must also be supplied for normalisation.

The data will be focused over the region of interest selected in the calibration tab. Files can be selected by providing run numbers or selecting the files manually using the browse button.

Ticking the “Plot Focused Workspace” checkbox will create a plot of the focused spectra for each of the focused runs when the algorithm is complete.

Clicking the focus button will begin the focusing algorithm for the selected run files. The button and plotting checkbox will be disabled until the fitting algorithm is complete.

The focused output files are saved in NeXus, GSS, and TOPAS format. All of these files are saved to:

<CHOSEN_OUTPUT_DIRECTORY>/Focus/

If an RB number has been specified the files will also be saved to a user directory:

<CHOSEN_OUTPUT_DIRECTORY>/User/<RB_NUMBER>/Focus/

Parameters ¶

Sample Run Number: The run numbers of or file paths to the data files to be focused.
Vanadium Number: The run number or file path used to correct the focused data files.
Chosen Region Of Interest: Select which bank to restrict the focusing to or allow for the entry of custom spectra (this is carried over from the Calibration Tab).

../../_images/EnggDiffExampleFocusOutput.png

Fitting ¶

This tab will allow for plotting and peak fitting of focused run files.

Focused run files can be loaded from the file system into mantid from the interface. The interface will keep track of all the workspaces that it has created from these files. When a focused run is loaded, the proton charge weighted average (and standard deviation) of the log values set in the settings options are calculated and stored in a grouped workspace accessible in the main mantid window.

Loaded workspaces can be plotted in the interface and the mantid fitting capability can be accessed from the ‘Fit’ button on the plot toolbar. This allows for the user to select peaks of any supported type (the default is BackToBackExponential) by right-clicking on the plot. The initial parameters can be varied interactively by dragging sliders (vertical lines on the plot). After a successful fit the best-fit model is stored as a setup in the fit browser (Setup > Custom Setup) with the name of the workspace fitted. Selecting this loads the function and the parameters and the curve can be inspected by doing Display > Plot Guess.

The output from the fit is stored in a group of workspaces that contains a matrix workspace of the fit value and error for each parameter in the model. If there is more than one of the same function, the parameters are stored in the same workspace with different x-values. For example, if there were two Gaussian peaks then there would be a workspace for each parameter of the Gaussian (i.e. Height, PeakCentre, Sigma) each of which will have two columns corresponding to each peak. Each workspace has a spectra per run loaded (each row in the table of the UI fitting tab). In general different models/functions could be fitted to each run, so when there is a parameter that does not exist for a run (or that run has not yet been fitted), the Y and E fields in the relevant row are filled with NaNs. The group of fit workspaces also contains a table workspace that stores the model string that can be copied into the fit browser (Setup > Manage Setup > Load From String).

The workspaces can be fitted sequentially (sorted by the average of a chosen log in the settings) or serially (fitted with the same initial parameters). If a valid model is present in the fit browser then the Sequential Fit and Serial Fit buttons (on the plot toolbar) will be enabled - it is not necessary to run an initial fit.

The user may want to fix or constrain certain model parameters, which can be done in the usual way in the fit browser. The sequential fit will populate the fit tables as above and store the model in the Custom Setups.

Parameters ¶

Focused Run Files: A comma separated list of files to load. Selecting files from the file system using the browse button will do this for you.
File Filters: Choose to filter by xunit (TOF or d-spacing) and region of interest (e.g. North Bank).

Texture (Pole Figure)¶

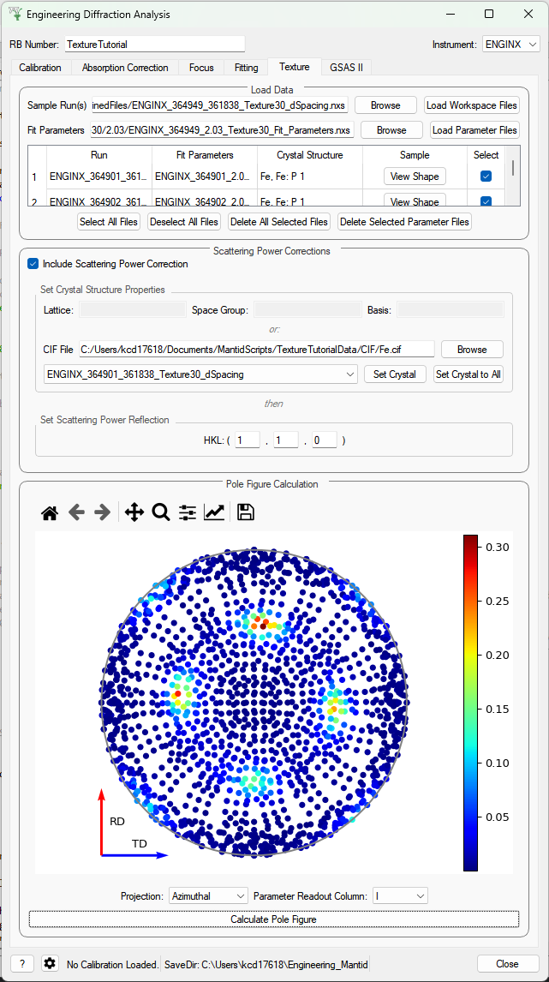

This tab allows data to be reduced into pole figure tables, comprising of alpha and beta angles (location of detector group relative to sample axes in spherical coordinates) and an optional attached value for that detector group. The tab also plots these pole figure tables as a pole figure in the panel beneath.

Parameters ¶

Sample Run(s): The run numbers of or file paths to the data files.
Fit Parameters: The workspace names of or file paths to the Table Workspaces with the values to be added to the pole figure table - expected to have one row per spectra in the corresponding workspace.
Lattice: String representation of the crystal lattice (eg. ‘2.8665 2.8665 2.866’, see Crystal Structure concept page)
Space Group: String representation of the crystal space group (eg. ‘I m -3 m’, see Crystal Structure concept page)
Basis: String representation of the crystal basis (eg. ‘Fe 0 0 0 1.0 0.05; Fe 0.5 0.5 0.5 1.0 0.05’, see Crystal Structure concept page)
HKL: The HKL of the reflection that has been fit
Projection: The 2D projection method of displaying the Pole Figure Table data (options are azimuthal or stereographic)
Parameter Readout Column: Which column of the parameter table workspaces to read to find the values which should be included in the pole figure table

Settings Parameters ¶

Cost Function Threshold: The maximum cost function value for a given spectra’s fit to be plotted in the pole figure
Peak Position Threshold: The maximum deviation in peak position from the expected position for a given spectra’s fit to be plotted in the pole figure. Expected position is either mean of all peaks or, if provided, peak position of given HKL
Scatter Plot Experimental Pole Figure: Flag for whether the experimental pole figure should have individual detector groups plotted as scatter points (checked), or should be interpolated and given as a contour plot (unchecked)
Contour Kernel Size: Sigma value of the gaussian smoothing kernel applied before the interpolation

Buttons/Functions ¶

Load Workspace Files: Loads the selected sample runs into the table
Load Parameter Files: Loads the selected table workspaces into the table, assigning them to each row currently without an assigned table, in turn
Select All Files: Sets all the rows of the table as selected
Deselect All Files: Sets all the rows of the table as unselected
Delete All Selected Files: Deletes all rows of the table which are set as selected
Delete All Selected Parameter Files: Removes all the set parameter files for the rows of the table that have been selected
View Shape: Pops up a plot of the sample shape on a given workspace, along with the relative orientation of sample axes (defined in the settings)

Set Crystal: Takes the crystal structure defined in either the CIF or the lattice/space group/basis inputs and applies it to the workspace in the drop down menu
Set Crystal to All: Takes the crystal structure defined in either the CIF or the lattice/space group/basis inputs and applies it to all the selected workspaces
Calculate Pole Figure: Creates the pole figure tables and plots the corresponding pole figure
