ModOsc

Description

Traverse Field sinususodally modulated oscillation. Sinusoidal distribution of precession frequencies about bias e.g. from SDW.

\[A(t)=A_0 \cos(\omega t + \phi)J_0(\omega_\text{mod}t)\]

where,

\(A_0\) is the amplitude,

\(\omega\) is the oscillation frequency,

\(phi\) is the phase,

and \(\omega_\text{mod}\) (G) is the modulation frequency.

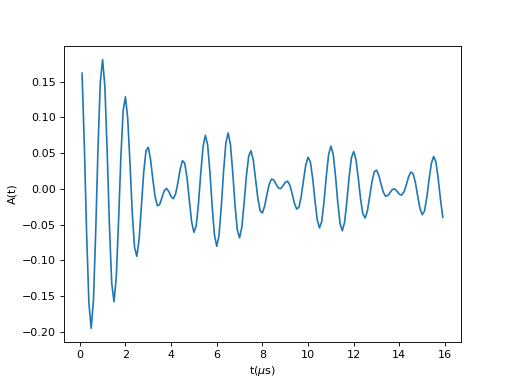

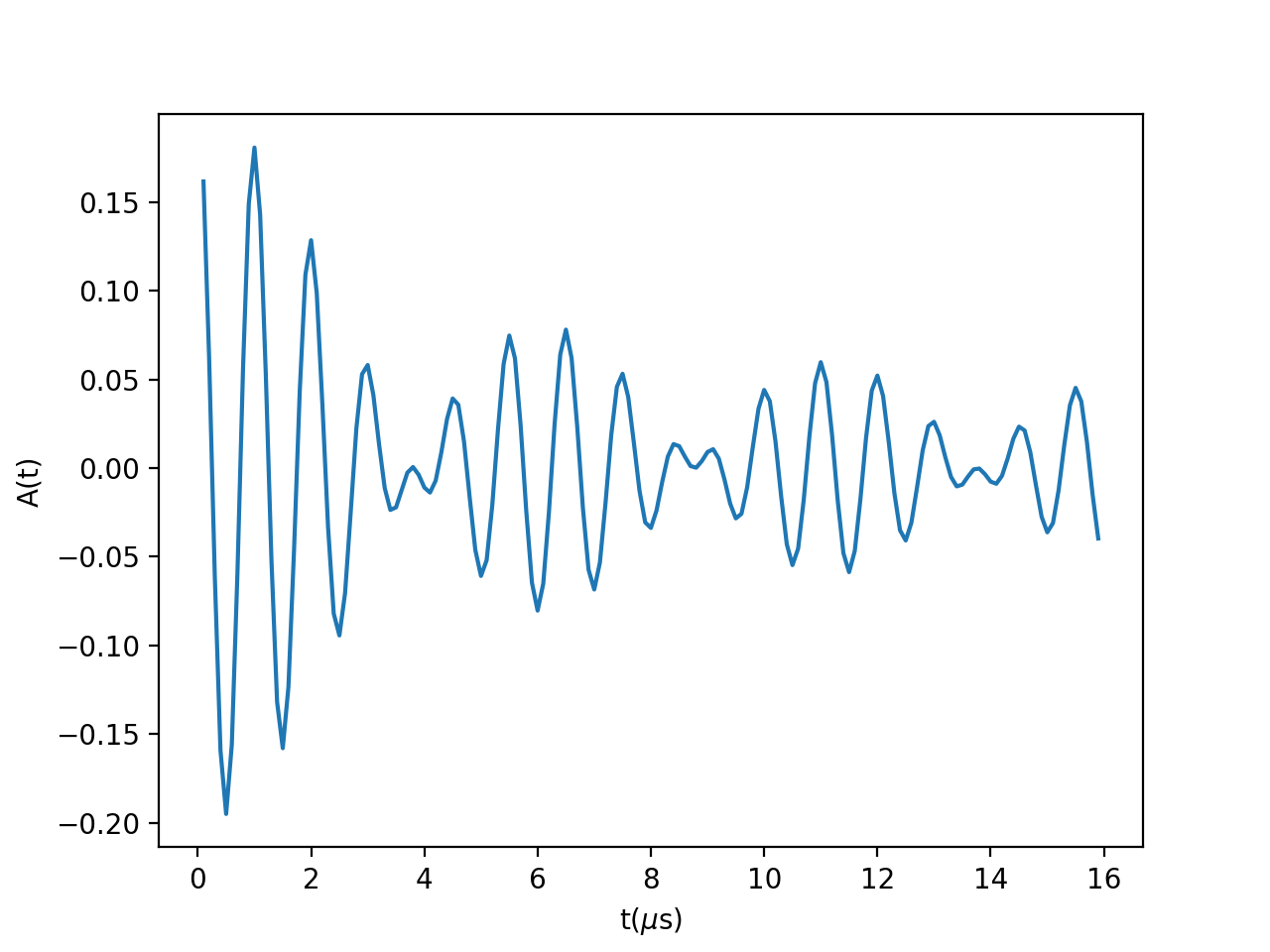

(Source code, png, hires.png, pdf)

../../_images/ModOsc-1.png

Properties (fitting parameters)

Name

Default

Description

A0

0.2

Freq

1.0

Oscillation Frequency (MHz)

ModFreq

0.1

Modulation Frequency (MHz)

Phi

0.0

Phase

References

[1] F.L. Pratt, Physica B 289-290, 710 (2000).

Categories: FitFunctions | Muon\MuonSpecific

Source

Python: ModOsc.py
